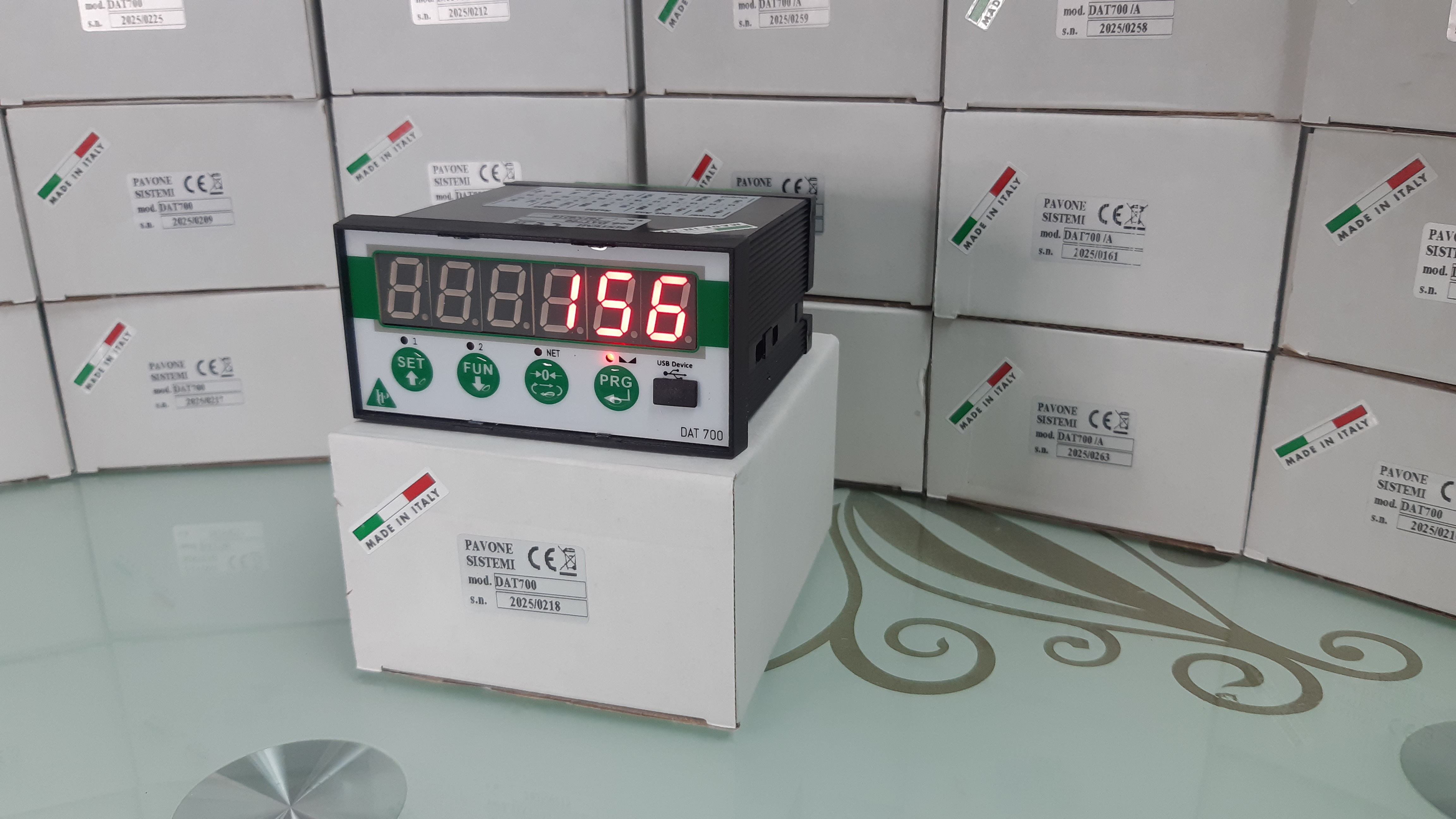

Weight Transmitter DAT 700-Italia

Power supply: 10-30VDC protected against reverse polarity. Protection with resettable fuse
Insulation: Class II
Operating temperature: -10°C ± +40°C (max. non-condensing humidity 85%)
Storage temperature: -20°C ± +60°C
Display: numerical 6-digit ... red 7-segment led (h 14 mm)
Dimensions: 96 mm x 48 mm x 100 mm (w x h x d) (terminal blocks included)
Material: self-extinguishing PPO (UL 94 V0)
Electrical connection: removable screw 5.08 mm pitch terminal blocks
Cell input: max 8 of 350 ohms in parallel
Operating voltage: 5Vdc (cell input), ± 10 V / ± 5 V (analog voltage output), 0 ± 20 mA / 4 ± 20 mA
(current analog output)
Output linearity: < 0.01% of full scale (cell input), 0.03% of full scale (current analog & analog
voltage output)
Temperature drift (Input): < 0.001% of full scale / C° (cell input), 0.002% of full scale / °C (current
analog & analog voltage output)
Internal Resolution: 24 bits (cell input), 16 bits (both current analog and analog voltage output)
Measuring range: from -7.6 mV/V to +7.6 mV/V
Filter: selectable 0.1 Hz - 1000 Hz
Decimal figures range: 0 to 4 decimal digits
Logic output: 2 photo relay outputs (24 VDC/Vac one NO contact) Relay contact rating 100 mA
Logic inputs: No. 2 opto-isolated
Serial port: Rs232 half duplex, Rs485 half-duplex, USB Device for instrument programming and
setting
Baud rate: Up to 115 kb/s (default 9600 b/s)
Fieldbus: PROFIBUS DP-V1, PROFINET, CANOPEN, ETHERNET IP, ETHERCAT, ETHERNET
(with external module)
Calibration: Digital from buttons (both current and analog voltage output)
Impedance: minimum 10K Ohm (current analog output), maximum 300 Ohm (analog voltage
output)
Microcontroller: 32-bit ARM Cortex M0+, 256KB Flash reprogrammable on-board by USB
Data storage: 32 Kbytes + optional Aliby memory (1MByte)
